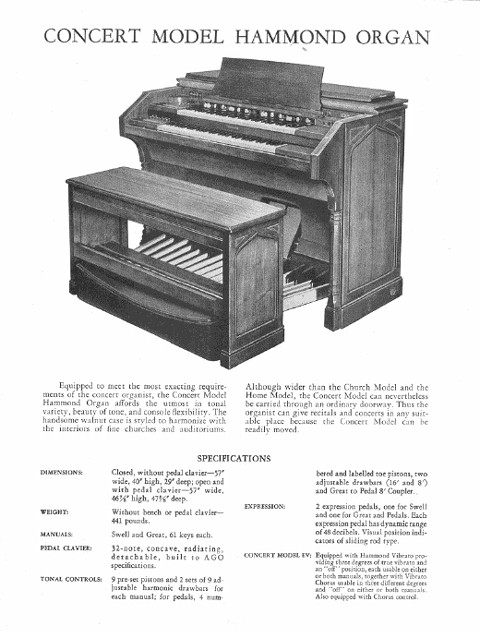

Model E
Production Years:
Jul 1937 to Jul 1942
Cabinet Size:
57x47-7/8x47-5/8 (WHD, inches) with pedal keyboard.
Approximately
579lbs, with bench and pedals.
Finish:
Walnut
Manuals:
Swell and great, 61 playing keys each. 32-note
concave radiating
detachable pedal board, built to AGO specifications.
Controls:
9 preset buttons and 2 sets of 9 adjustable harmonic
drawbars for each
manual: For pedals - 4 numbered and labeled toe
pistons, 2 adjustable
drawbars (16' and 8'), and great to pedal 8'
coupler. 2 expression pedals,
one for swell and one for great and pedals. Visual
position indicator of
sliding rod type. Two expression pedals, one
for swell and one for great
and pedals.
Features:
Separate adjustable tremulants for swell and
great manuals. Standard main
and chorus generator units; "ON" and
"OFF" switch for chorus.

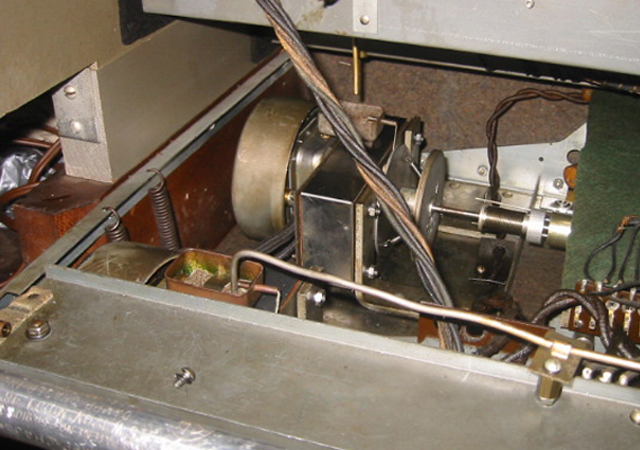

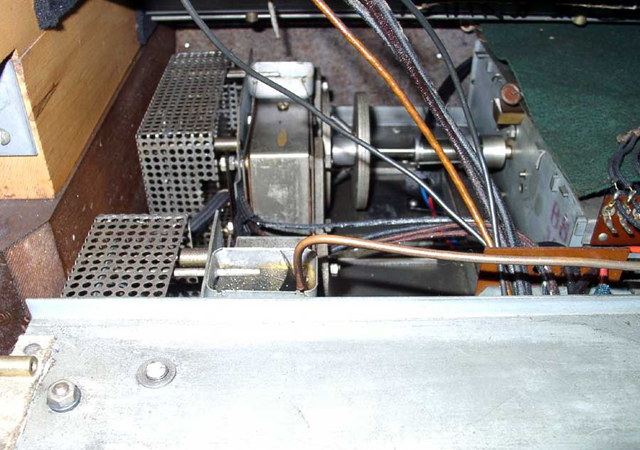

上記はMODEL-Eの60Hz用のデュアル ジェネレーター部分の画像です。
2台共前後にモーターが並んでるのが解ります。
このMODELーEを最後にコーラスの為の贅沢なデュアル ジェネレーター方式は無くなり、
上位モデルはB3等に使われてるスキャナー付きシングル ジェネレーター方式に変わって行きます。
